● Encoder, switcher, recorder, monitor, in One

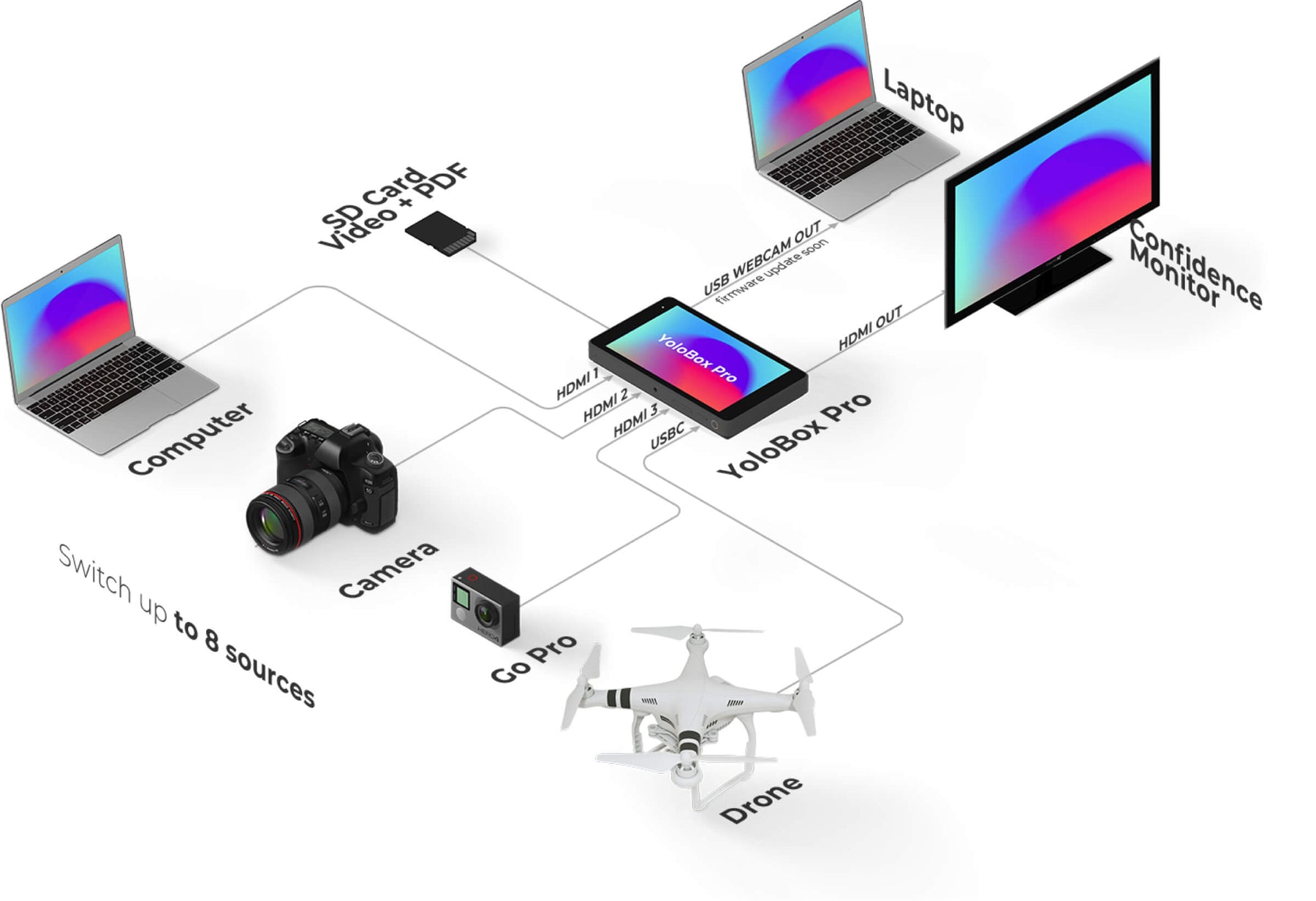

● Live switch up to 6 video sources
● No computer/desk workstation required

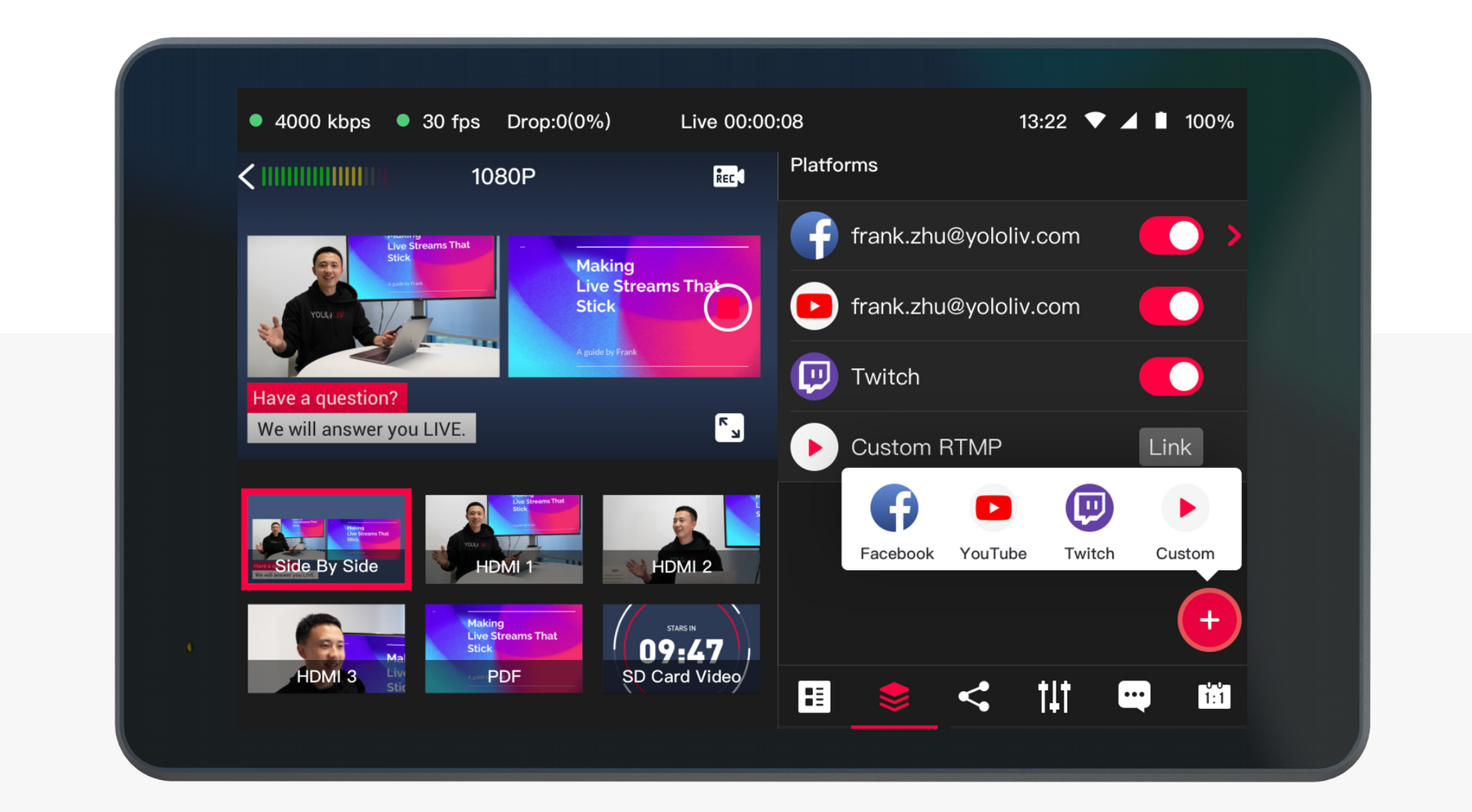

● Great ease to operate, touchscreen control
● Super portable, fit into your pocket
● Support 4G LTE & built-in battery - Live On the Go

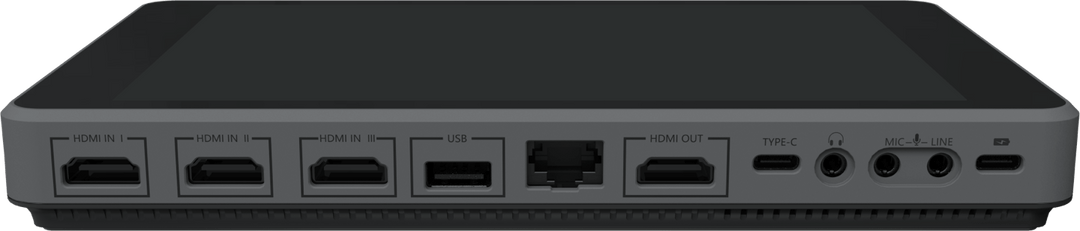

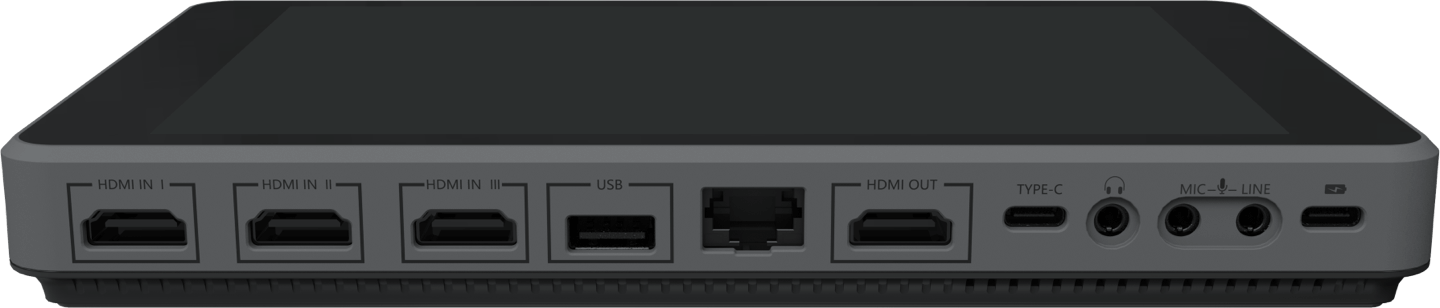

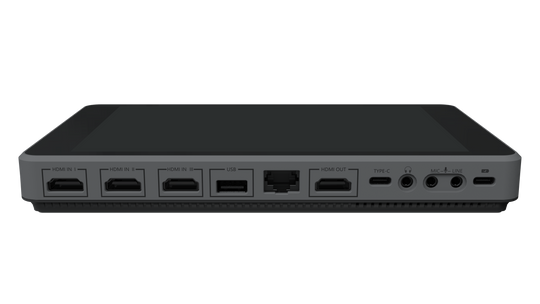

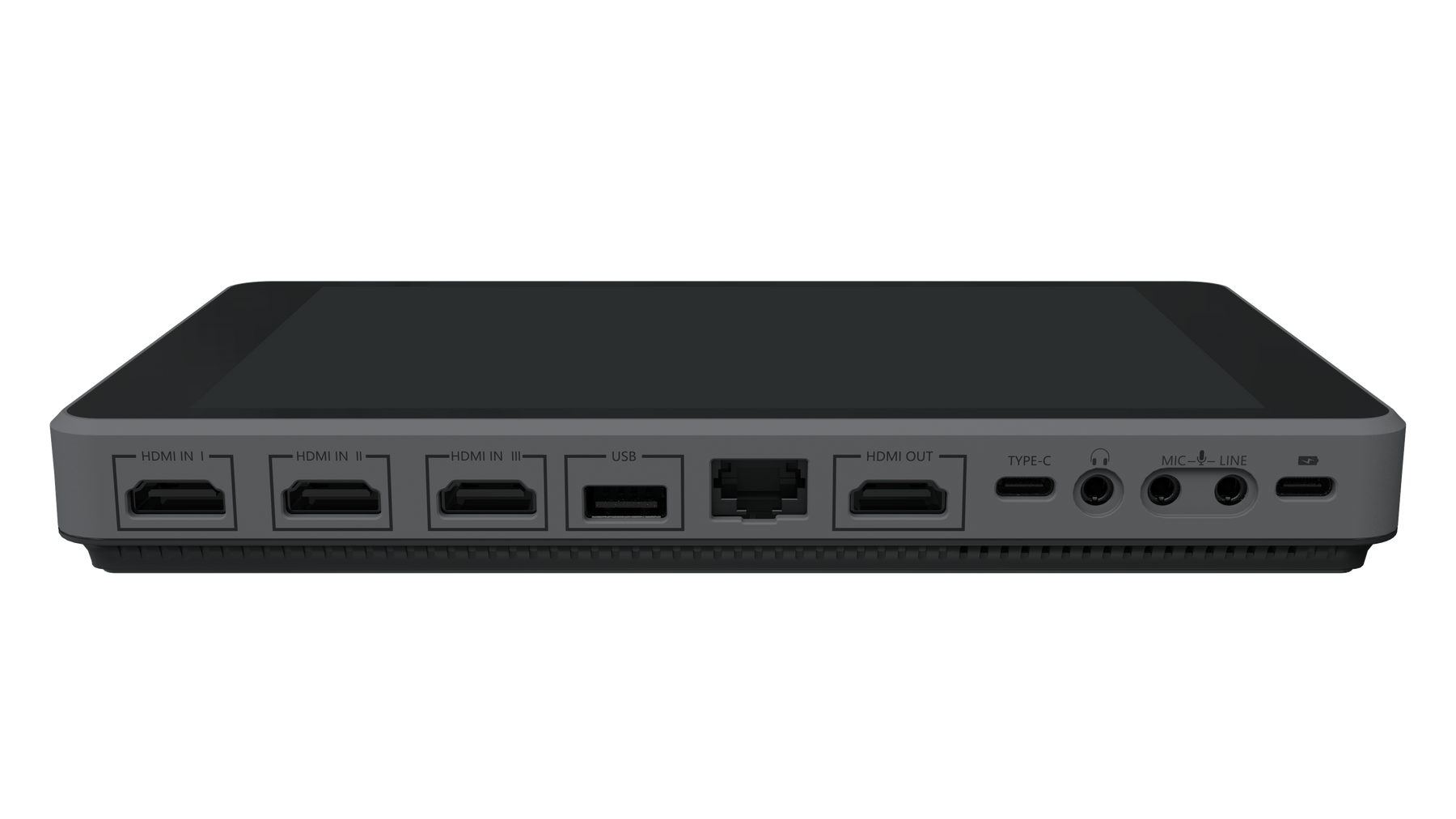

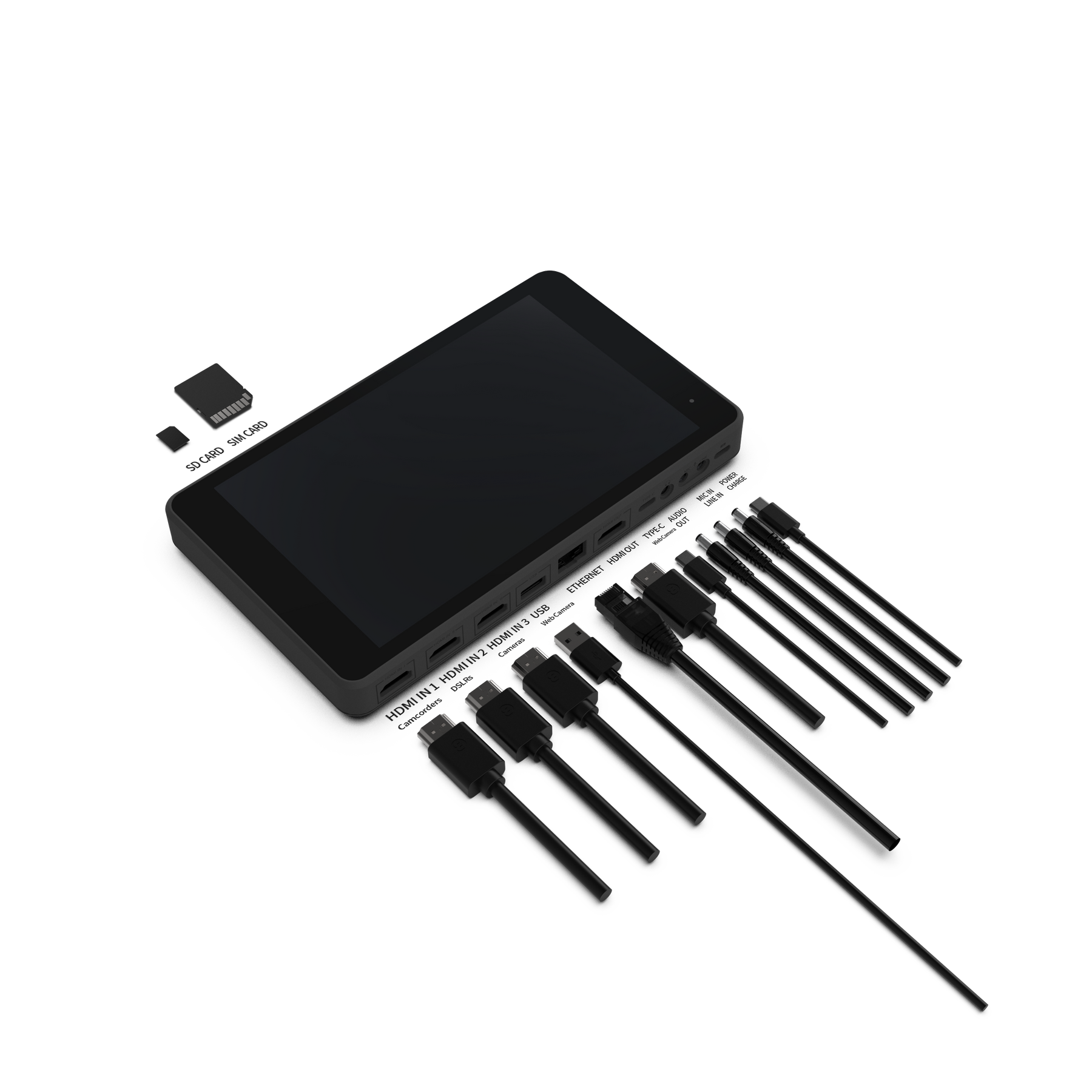

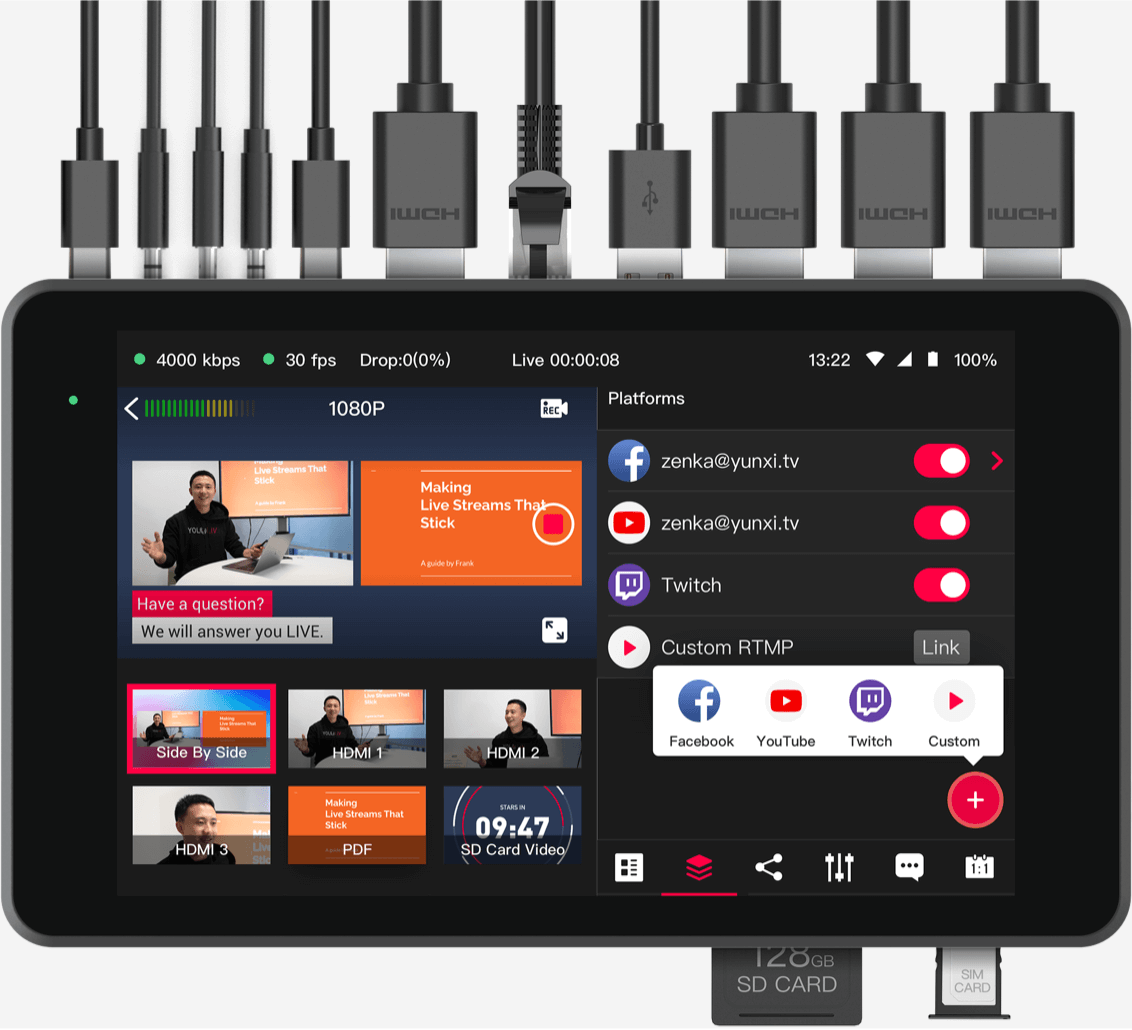

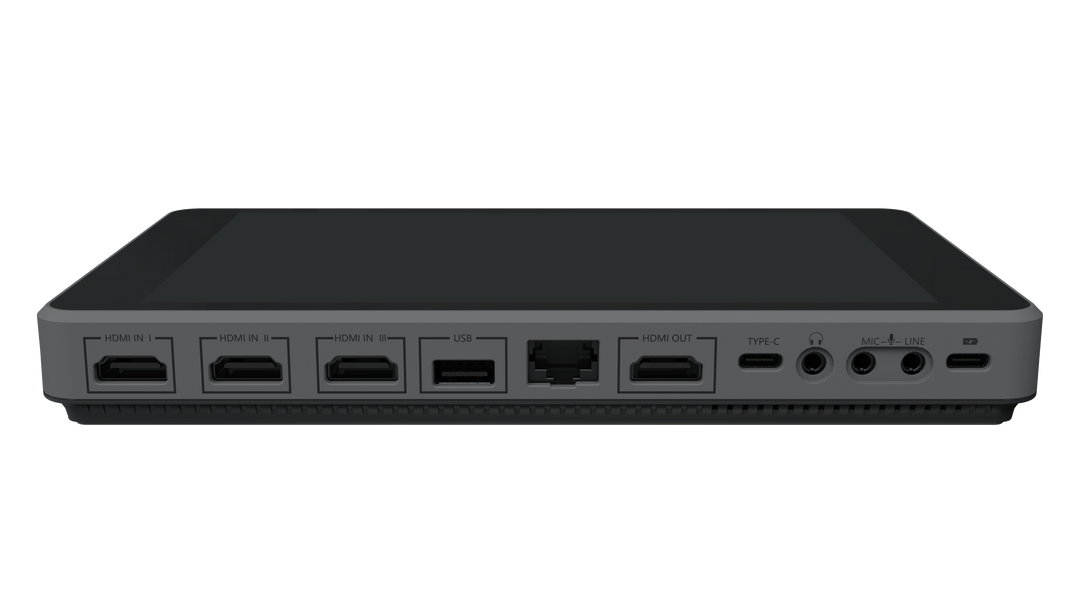

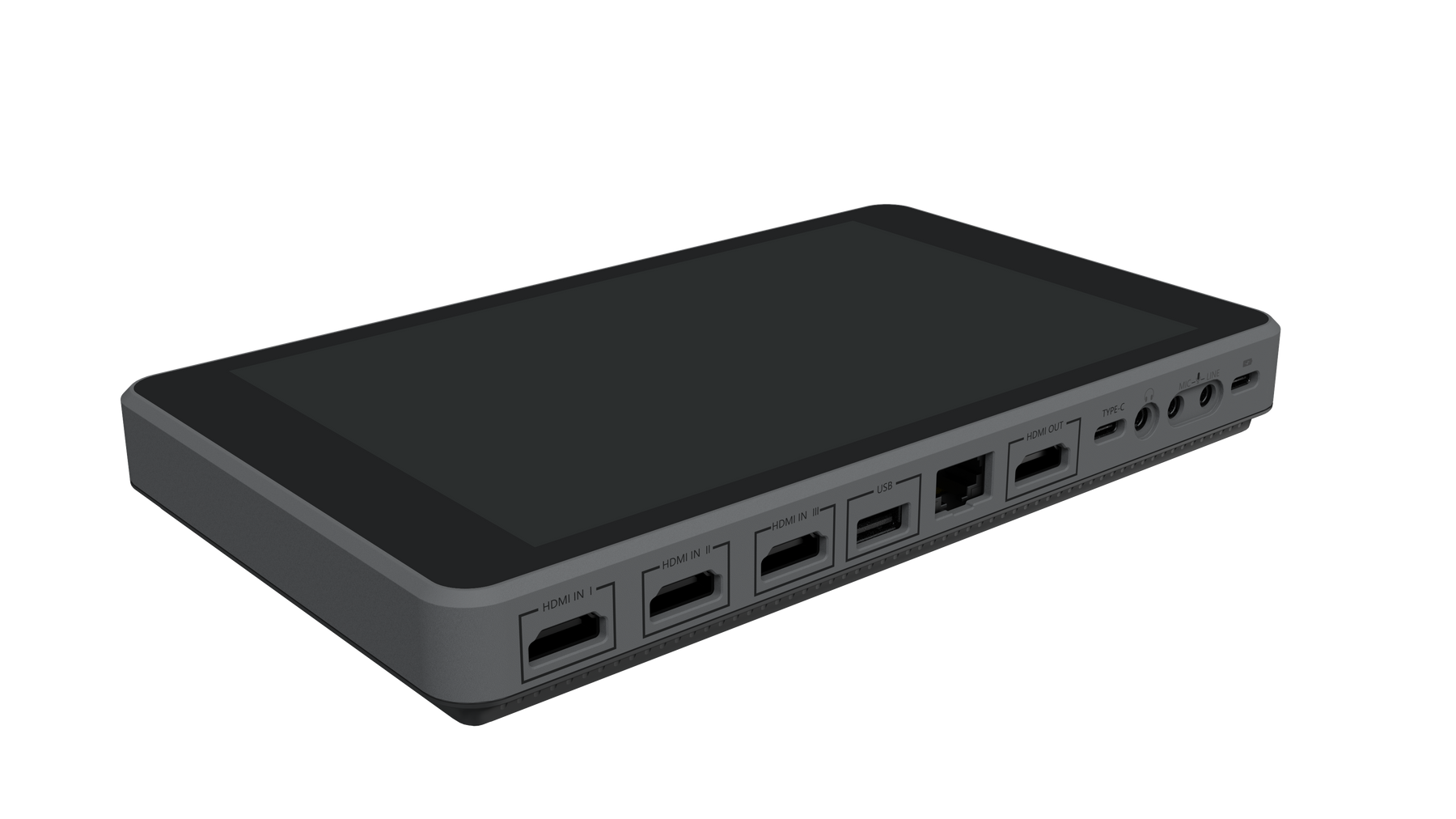

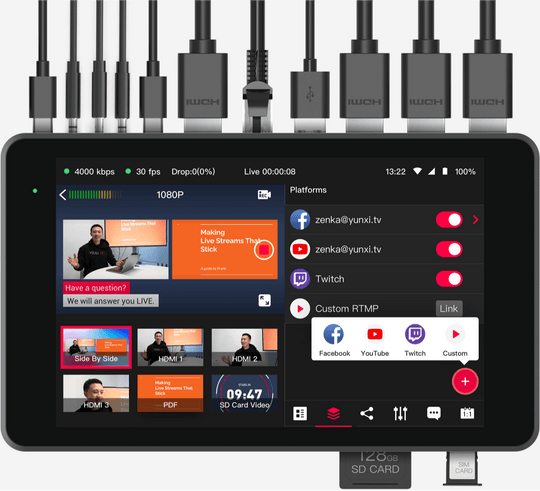

Ports
- 1HDMI IN 1: Video input
- 2HDMI IN 2: Video input
- 3HDMI IN 3: Video input
-
4USB IN: Video input
(Please note in some usb webcams, only video can be captured.) - 5Ethernet: Connect to Internet by Ethernet cable
- 6HDMI OUT: Video output
- 7TYPE-C 3.0: A fully functional interface supports input
- 8AUDIO OUT: Connect with 3.5mm monitor headphones
- 9MIC IN: Mono, connect to microphone for recording
- 10LINE IN: Stereo, connect to electric guitar or synthesizer
- 11TYPE-C: Power connector
- 121/4" Screw Hole: Mount YoloBox Pro with camera
- 13Insert SD card as video sources (video & PDF) & for recording
- 14SIM Card Slot: Insert SIM Card to connect to Internet
- 15Power Button: Turn on and turn off
Encoded Format
- Video Encoded Format：H.264
- Audio Encoded Format：AAC (44.1k)
- Video Recorded format：MP4
- Audio Input Format：32kHz/44.1kHz/48kHz/16-bit/16kHz
- Video Input Format：1080i/ 720p/ 1080p
- Live Broadcast Resolution：540P/720P/1080P
Video Storage
- Storage Card Type：SD Card
- Storage Card Capacity：Expanded to 128G in FAT32 Format
Network Connection
- WiFi：2.4G/5G
- 4G Network Countries & Frequency Band For
- Users：[NA：Variant for North America（US/Canada/Mexico）]
- B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
- Notes：Mexico B4
- For Non-US/Canada/Mexico Users：（EM:Variant for EMEA/India/Korea/Taiwan/South
- Asia/Latin America/Australia/New Zealand）Users：
- B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
- Notes：Thailand B7
- Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
- SIM Card Size：Nano card
Power
- Power Interface：Type C, Quick Charge 3.0
- Battery Capacity：10000mAh
- Rated Voltage：5V-3A; 9V-2A; 12V-1.5A
Transmission
- Network Protocol：RTMP(S)
Working Environment
- Operating Temperature：-10℃-40℃
- Storage Temperature：5℃-40℃
Manufacturer: Yololiv
